Diamond/cBN Chainsaw Sharpening Wheel, cbn chainsaw grinding wheel,diamond chainsaw grinding wheel,diamond chainsaw sharpening wheel

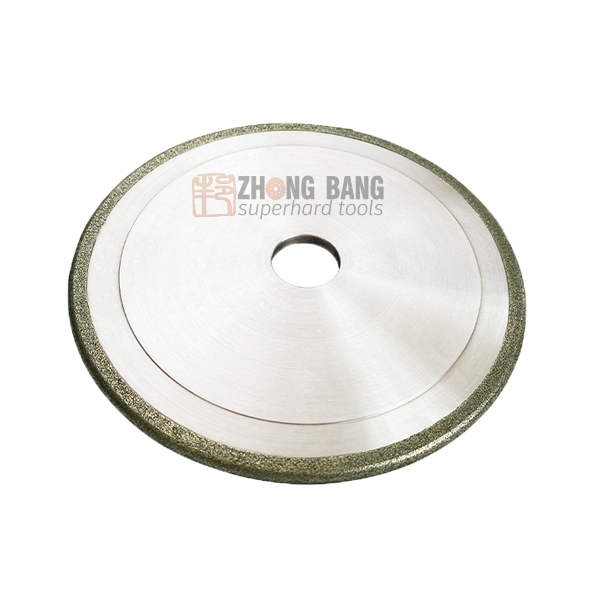

Diamond/cBN Chainsaw Sharpening Wheel

Diameter (mm): Customizable

Thickness (mm): Customizable

Aperture (mm): Customizable

Super abrasive: cBN/Diamond

Product Introduction

Introduction of Zhongbang's Diamond/cBN Grinding Wheel for Chainsaw Sharpener
Diamond/cBN plated Chainsaw Grinding Wheel. Diamond/cBN superabrasive wheels are for use on chainsaw chain.
Diameter: 4″ (104 mm), 5 3/4″ (146 mm) and 8″ (203 mm
Inner Hole: 7/8″ (22,23 mm), but every wheel comes with the reducing spacer which reduces bore size to 12 mm; For 8″ (203 mm) wheels bore diameter is 1″ (25,4 mm)
Pitches used for chainsaw: 1/4 inch, 0.325 inch, 3/8 inch
Diamond and cBN chainsaw sharpening wheels have good surface finish, long life. The superabrasive grinding wheels are suitable for chain saw sharpening in woodworking industry.

Suitable machines of chainsaw grinding wheel
Timberline, Oregon, Granberg Bar-Mount, Timber Tuff, Blue Max, Stihl,Sportsman Earth,Husqvarna 653000035,Electric Grinder and others chainsaw sharpener

Applications of chainsaw sharpening wheel
* Diamond wheels for carbide tipped chain sharpening
* CBN wheels for steel chain sharpening

When choosing the correct wheel, you should know the pitch of your chain. If you are unsure which wheels to choose please contact us to receive a quick advice.

Which wheel to choose: diamond or CBN
If you are sharpening steel chain - CBN wheel is the correct choice.
If you are sharpening carbide tipped chain - you should choose diamond wheel. Please have in mind, you cannot use CBN wheel on carbide tipped chain. Never use diamond wheel on steel chain as well.

Electroplated Diamond cBN Wheel

Our Electroplated CBN grinding wheels for sale come in different diameters, profiles and grit strengths to give your tools the sharpness you need to properly and safely turn your wood pieces. We supply Steel Body CBN bench grinder wheel and Aluminum Body CBN bench grinder wheel. CBN Wheel for Woodturning Tool Types includes Spartan CBN Wheels, 4 in-1 CBN Wheels, Radius Edge CBN Wheels, Mega Square CBN Wheels, 6 Inch Wheels.

Diameter:
Customizable

Thickness:
Customizable

Material:
CBN

INQUIRY

Details

CBN grinding wheel

Used for the cleaning of the trimming, rag, burr, joint line, and the casting head of the small and medium workpiece.

Diameter:
Customizable

Thickness:
Customizable

Material:
CBN

INQUIRY

Details

cbn grinding wheel tools for engine valve

CBN Grinding Wheels for Engine Valve

electroplated cbngrinding tools/ wheels for auto engine valves are used for the forming grinding of the engine lock slot,neck,tapered surface,and the end surface of the engine valve,as well as the cutting off and multiparts processing.

Diameter:
Customizable

Thickness:
Customizable

Material:
CBN

INQUIRY

Details
